MACFAB 75 Multi Chamber Baler

A Multi chamber baler is a great option for businesses who want to bale more than one type of material in the one machine. For example, one chamber could be for cardboard, a second chamber for plastic film and a third chamber with an insert could compact food cans. The chambers are top loading which makes it easier for operators to fill each of the bale chambers. An excellent choice for a wide range of businesses but most notably the hospitality industry and Marine sector.

Features

  • top loading of material.
  • Suitable for a wide range of businesses generating recyclable waste.
  • Bale Eject trolley included
  • Long stroke on compaction cylinder.

Extras

  • Auto control panel with bale full light and E-stop with locking key
  • Additional chambers may be added.
  • Galvanised finish
  • Insert to crush small cans
  • Alternative power supplies

Baler images

Twin chamber baler
75 MULTI BALER IN BLUE

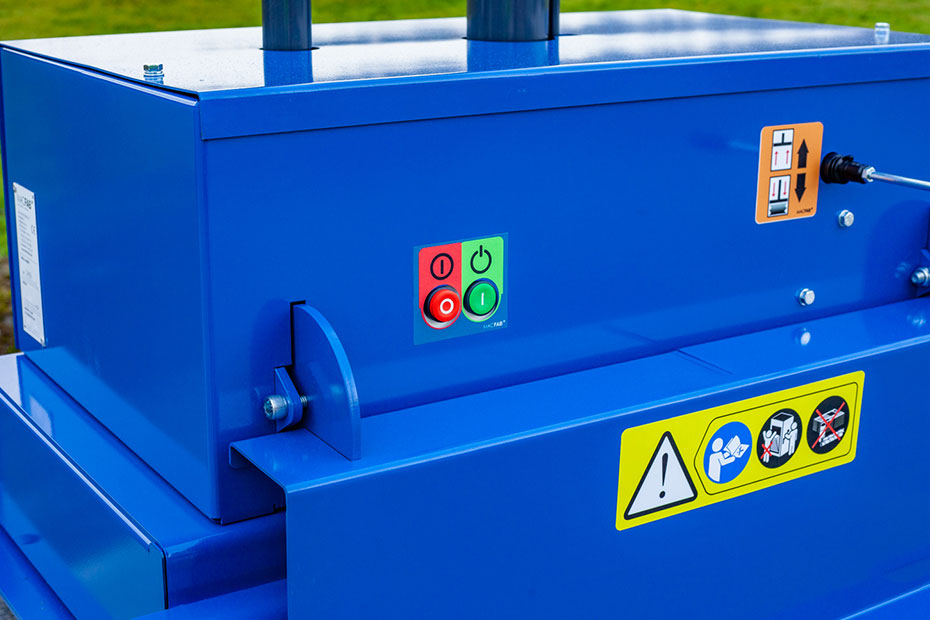

baler controls
Lever valve contols
Galvanized baler
75 multi baler with galvanised finish
2 chamber baler
75 multi baler with PLC controls
3 chamber vertical baler
75 multi baler with 3 chambers.

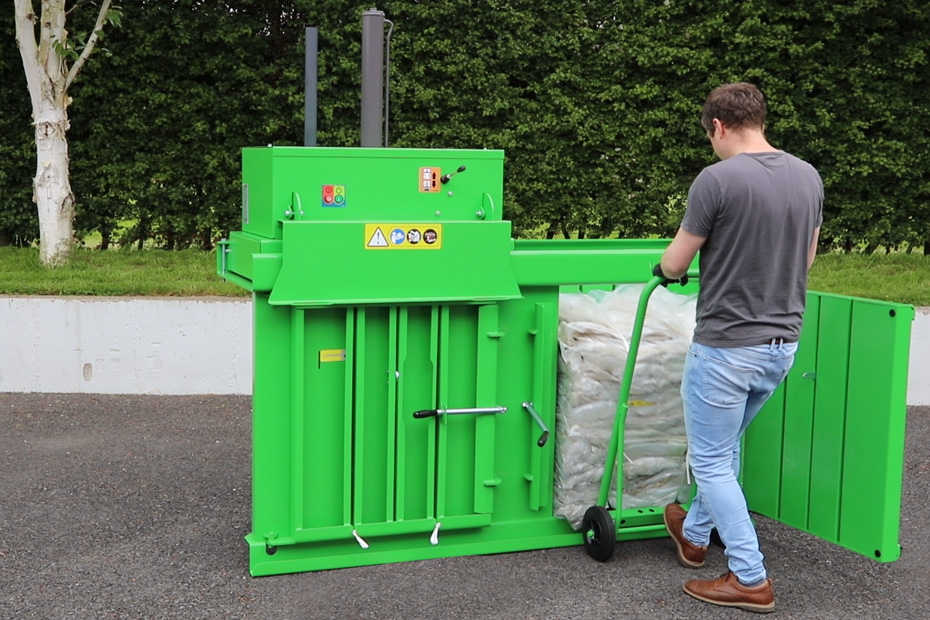

using a bale trolley to eject a plastic bale.
Using a bale trolley to eject a plastic bale.

Videos

75 MULTI BALER- Drawing

(PDF 204.92 KB)
download

Technical information

An overview of the baler specifications, dimensions, loading aperture and bale size. Please feel free to contact us to confirm any questions you have on the machines specification or performance

BALER DIMENSIONS
Height: 2.005 m
Width: 2.050 m
Depth: 0.872 m
Weight: 562 kg
Transportation Ht: 2.005 m
BALE DIMENSIONS
Height: 0.675 m
Width: 0.700 m
Depth: 0.500 m
Weight: 75kg (depending on material used)
BALER SPECS
Power Supply: 220 - 240 Volt 1 phase
Motor: 1.5 kW 13 Amp
Pressing Force: up to 3.5 Ton
Noise Level: 68 decibels
Cycle Times: 35 seconds
LOADING APERTURE SIZES
Height: 0.500 m
Width: 0.700 m
